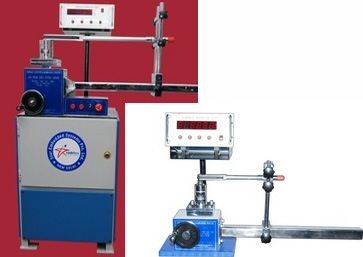

Torque Wrench Calibration Machine

Providing you the best range of torque wrench calibrator machine, torque wrench calibration machine manufacturers (hand- operated), length calibration machine and servo control torque wrench calibration machine with effective & timely delivery.

Torque Wrench Calibration Machine Manufacturers

This product is most successful Torque Wrench Calibrator Machine which is available in Manual versions.

Product Details:

Weight

Accuracy

+/- 0.5%

Loading mode

Manual

Capacity Range

5 NM to 500 NM

Effective lever

283 mm - 412 mm

Effective stroke

430 mm - 850 mm

20 - 40 kg

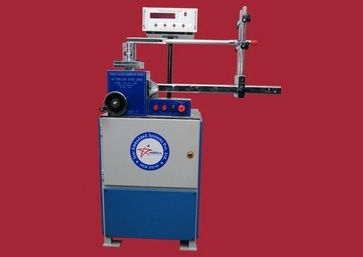

Torque Wrench Calibration Machine (Hand-Operated)

We are Hand-OperatedTorque Wrench Calibration Machine Manufacturers. It has made from supreme quality material for our clients at reasonable prices.

Product Details:

Display Type

Digital

Capacity

500 Nm to 5000 Nm

Accessories

Adopters 1/8" to 3/4" (5 Numbers)

Torque applying

Through hand operated rotating wheel

Warranty

12 months (from the date of installation)

Calibration

NPL / NABL Calibrated (Optional)

Torque Sensors

3 Numbers

Least Count

0.001 / 0.01 / 0.1 for Nm

Measuring Units

Nm, Kgm, Lbft / NCm, KgCm, LbInch selectable

Accuracy

+ 0.5% of the reading

Display

Micro controller based 6 Digit Digital Display System

Power required

180VAC to 260VAC @ 50 Hertz

Calibration & verification for

Digital, Dial & Click type Mechanism torque wrench, Electric & Pneumatic Screw driver

Optional

Speed controlled Motorized operation

PLC & HMI based Fully Automatic

Computerized report generation software

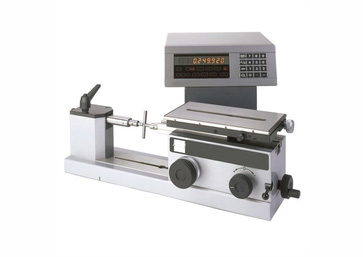

Length Calibration Machine

Our company provides a wide range of Length Calibration Machine, which is manufactured using high-quality raw material.

Product Details:

Capacity

500 mm, 1000 mm

Brand

Star embsys

Application

Industrial, Laboratory

Resolution

0.01 mm

Accuracy

+/- 0.1% of FSO

Drive

Manual / Motorized

Operating voltage

230 VAC @ 50Hertz

Warranty

12 months (from the date of installation)

Calibration

NPL / NABL Calibrated (Optional)

Feature:

Provision for winding tape & Steel Scale calibration

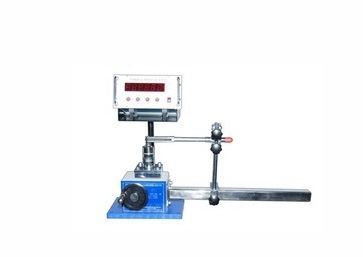

Servo Control Torque Wrench Calibration Machine

We are the leading manufacturer and supplier of Servo Control Torque Wrench Calibration Machine made from supreme quality material for our clients.

Product Details:

Application

Laboratory, Industrial

Capacity

0 to 2000 Nm

Display

Micro controller based 6 Digit(Digital Display System)

Power required

180VAC to 260VAC @ 50 Hertz

Accessories

Adopters 1"/ 1/2" to 3/4" 3 Numbers

Torque applying

Speed Control Motorize & Through hand operated rotating wheel

Calibration

NABL / NPL Calibrated (Optional)

Warranty

12 months from the date of installation

Standard

ISO 6789-2017

Torque Sensors

3 Numbers (20Nm, 200Nm, 2000Nm)

Least Count

0.001/ 0.01 / 0.1 Nm

Measuring Units

Nm, Kgm, Lbft / selectable

Accuracy

+ 1% of the reading

Calibration & verification for

Digital, Dial & Click type Mechanism torque wrench, Electric & Pneumatic Screw driver

Feature:

First Peak auto hold & Buzzer on Overload
