• F-52 , Mayapuri Industrial Area Phase-II , Mayapuri, New Delhi-64

TORQUE INDICATOR MANUFACTURERS

We are a leading Manufacturer of digital torque indicator and calibration digital display indicator from New Delhi, India.

Torque Indicator Manufacturers

Star Embedded Systems Pvt Ltd is a recognized brand known for Torque Indicator Manufacturers. We are the leading client for manufacturing the Torque Indicators. Our expert team of trained and professional engineers manufactures the four wire system which is used to indicate the torque. These indicators work at 10,000 counts maximum resolution.
We manufacture the torque Indicator with the probable power consumption 10VA and power supply of 230VAC, 50Hz. The Torque Indicator is made with full range push button zero and tare technology. These indicators are manufactured with cost effective technology to make it affordable for the user to buy it. These products are manufactured and tested well for its efficient functioning in the laboratory.

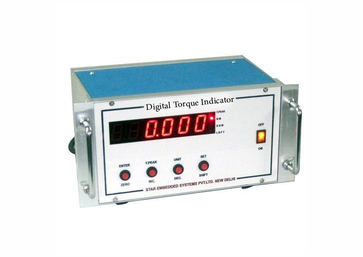

Digital Torque Indicator Manufacturers

We are a well-renowned organization in the industry to provide our patrons the best quality array of Digital Torque Indicator.

Product Details:

Display

4 Digits, High Glow Red, 1.5" Large Display

Brand

Star embsys

Application

High Precision Testing Machines, SPM's, Calibration

Size

110mm x 360mm x 265mm

Counts

Up to + 9,000 Stable Reading

Input Sensors

Torque Transducer / Pressure Transducer / LVDT

Outputs

2 Relay, 0 - 12 Volt (Optional), RS 232 (Optional)

Function

Setpoint for relays, Zero, Data Hold, Peak Data Hold

Protection

Overload Buzzer

Channel

2 Channel with Separate Calibration

Unit

2 Unit Conversion

Power Supply

230 VAC at 50 Hertz

Calibration Digital Display Indicator

We are the leading manufacturer and supplier of Calibration Digital Display Indicator.

Product Details:

Display

6 Digits high glow red display

Counts

Up to + 2,10,000 stable reading

Input Sensors

Torque Transducer

Update speed

Up to 80 samples/second (High speed)

Function

Set point for relays, Zero, Data Hold, Peak Data Hold

Protection

Overload Buzzer

Channel

Duel Channel with separate calibration

Size

Size 220mm x 135mm x 160mm

Warranty

12 months from the date of installation

Torque Sensor Manufacturers

Starembsys Pvt. Ltd. is a leading the industry of Torque Sensor Manufacturers and Suppliers in India. The torque sensor or torque transducer is a machine for measuring and recording torque on a rotating system, such as an engine crankshaft or bicycle crank. Static torque is relatively easy to measure. Dynamic torque, on the other hand, is not easy to measure, as it is usually measured in systems stabilized by shafts.

Product Details:

Hysteresis

0.25 %

Material

Stainless Steel

Capacity Range

5 NM to 500 NM

Non Linearity

+-0. 1 %

Rated Capacities

2 Nm, 5 Nm, 10 Nm, 20 Nm, 50 Nm, 100 Nm

Accuracy

Extreme accuracy

Brand

Starembsys
