TORSION SPRING TESTING MACHINE MANUFACTURERS

Providing you the best range of Torsion Spring Testing Machine, Computerize Spring Testing Machine from New Delhi, India.

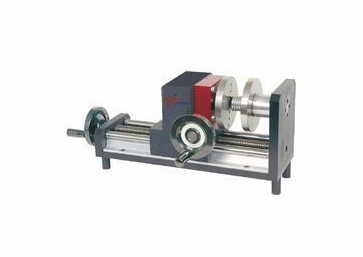

Torsion Spring Testing Machine

Product Details:

Capacity

5, 10, 20, 50, 100, 200 Nm

Type

Universal, CW and CCW

Warranty

12 months from the date of installation

Calibration

NABL / NPL Calibrated (Optional)

Least Count

0.1 Degree (Deflection)

Measuring Units

Nm, NCm, KgCm selectable

Maximum Deflection

180 Degree

Power required

180 to 260 VAC at 50 Hertz

Accuracy

+ 1 % of the reading

Display

Microcontroller based 6 Digit Digital Display

Torque applying

Through hand operated rotating wheel

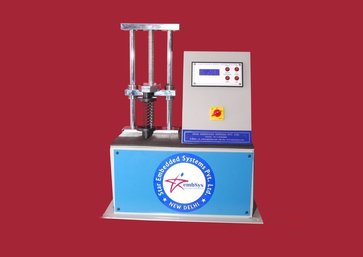

Computerize Spring Testing Machine

We are the leading manufacturer and supplier of Computerize Spring Testing Machine.

Product Details:

Capacity

100, 200, 500Kgf

Load applying

Speed controlled Motorized operation

Calibration

NABL / NPL Calibrated (Optional)

Speed

20 mm/min to 200 mm/min, 50 mm/min to 500 mm/min

Measuring Units

N, KN, Kgf (Optional)

Least Count

0.01mm (Deflection)

Type

Universal, Tension & Compression

Software

The windows based software

Maximum Deflection

350mm, 650mm

Accuracy

+ 1% of the reading

Power required

180VAC to 260VAC at 50 Hertz

Warranty

2 months from the date of installation

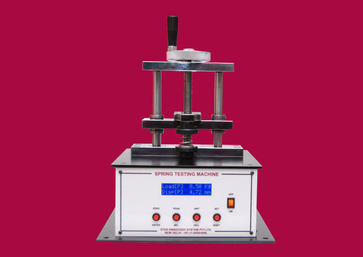

Digital Spring Testing Machine

We are the leading manufacturer and supplier of Digital Spring Testing Machine.

Product Details:

Capacity

5 Kgf to 200 Kgf

Calibration

NABL / NPL Calibrated (Optional)

Type

Universal, Tension and Compression

Power required

180 VAC to 260 VAC at 50 Hertz

Least Count

0.01mm (Deflection)

Measuring Units

N, Kgf, Lbf selectable

Load applying

Through hand operated rotating wheel

Maximum Deflection

300 mm

Warranty

12 months from the date of installation

Display

Microcontroller based 6 Digit Digital Display System & LCD

Accuracy

+ 1 % of the reading

Spring Testing Machine Manufacturers

Star Embedded Systems Pvt Ltd is the recognized brand as Torsion Spring Testing Machine Manufacturers. We are the leading brand which manufactures the Torsion Spring Testing Machine by using the best quality of raw material sourced from high class vendors. This is a spring testing machine which is designed to test the torsion of the springs.

This machines is been enabled with the transducers which electronically measures torque and rotational position. These machines use movable pins and fixture plates to get adapted to the spring configurations. These machines are accessible to motor or manual drives both. If the machine is motorized then it becomes easy in the setting up phase and also enriches the accuracy. We manufacture these machines with the help our technical expert who are trained and professional engineers.


Main Characteristics:

These testers are metric and English oriented.

These machines can capture angles of rotation upto preset torques.

This machine provides the accuracy of +/-1%.

It has 0.1 degree off angle of resolution.

The machines help to provide the printed test results.

We are offering these machines at a very nominal rate.

These machines are available in manual and motorized drives.
