TESTING MACHINE

Offering you a complete choice of products which include Torsion Spring Testing Machine , Tensile Testing Machine , Extensometer Testing Machine, Steering Lock Latch Testing Machine, Universal Testing Machines, Computerized Compression Testing Machine etc.

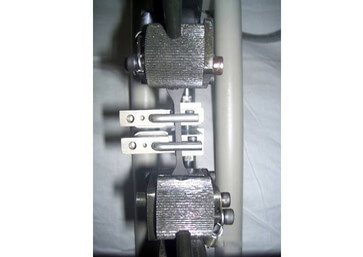

Extensometer Testing Machine

Extensometer Testing Machine can record the displacement between its cross heads on which the specimen is held. However, this method not only records the change in length of the specimen but also all other extending / elastic components of the testing machine and its drive systems including any slipping of the specimen in the grips. Once the machine is started it begins to apply an increasing load on a specimen.

Product Details:
Brand Star embsys
Grade Automatic, Semi-Automatic
Max Test Force 5 kN
Resolution 0.02 mm
Capacity 25 kN to 200 kN
Material for Construction Stainless steel

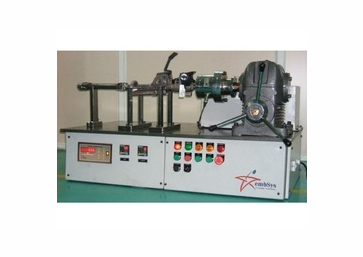

Torsion Spring Testing Machine

Product Details:
Capacity 5 Nm, 10 Nm, 20 Nm, 50 Nm, 100 Nm, 200 Nm
Calibration NABL / NPL Calibrated (Optional)
Warranty 12 months from the date of installation
Type Universal, CW and CCW
Least Count 0.1 Degree (Deflection)
Measuring Units Nm, NCm, KgCm selectable
Accuracy + 1 % of the reading
Display Microcontroller based 6 Digit Digital Display System
Maximum Deflection 180 Degree
Power required 180 VAC to 260 VAC at 50 Hertz
Torque applying Through hand operated rotating wheel

Computerized Tensile Testing Machine Manufacturers

We are offering a wide range of Computerized Tensile Testing Machine.

Product Details:
System status Digital with Computer Interface
Resolution of Displ 0.01 mm
Speed 50 to 520 mm/ minute
Machine Capacity Available in 100Kgf/ 1KN, 500Kgf/5 KN, 1Tonf/ 10KN, 2Tonf/ 20KN, 5Tonf/ 50KN, 10Tonf/ 100KN
Number of Screws Twin
Software The windows based software on interfacing with computer
Data Entry Through software
PC Connectivity RS - 232
Reports printouts Graphical-data type reports can be printed through software Load Cell S - Type
Load Cell Unit Kg/ N/ Ton/ kN
Crosshead Travel 1200 mm

Digital Tensile Testing Machine

We are the leading manufacture and supplier of Digital Tensile Testing Machine made from supreme quality material.

Product Details:
Brand Star embsys
System status Digital with computer Interface
Reports and printouts Graphical-data type reports can be printed through software
Load cell S Type
Load cell unit Kg /N /Ton /kN
Cross head travel 1000 mm
Resolution of displ 0.01 mm
Speed 50 to 500 mm / minute
Machine capacity Available in 100Kgf/1KN, 500Kgf/5KN, 1Tonf/10KN, 2Tonf/20KN, 5Tonf/50KN, 10Tonf/10
Number of screws Twin
Software The windows based software
Data entry Through software
PC connectivity RS - 232 / USB
Features:
Low maintenance Coast
High operational Efficiency

Computerize Spring Testing Machine Manufacturers

We are the leading manufacturer and supplier of Computerize Spring Testing Machine.

Product Details:
Capacity 100, 200, 500Kgf
Load applying Speed controlled Motorized operation
Calibration NABL / NPL Calibrated (Optional)
Warranty 2 months from the date of installation
Type Universal, Tension & Compression
Least Count 0.01mm (Deflection)
Measuring Units N, KN, Kgf (Optional)
Accuracy + 1% of the reading
Maximum Deflection 350mm, 650mm
Software The windows based software
Power required 180VAC to 260VAC at 50 Hertz
Speed 20 mm/min to 200 mm/min, 50 mm/min to 500 mm/min

Digital Spring Testing Machine

We are the leading manufacturer and supplier of Digital Spring Testing Machine.

Product Details:
Capacity 5 Kgf to 200 Kgf
Calibration NABL / NPL Calibrated (Optional)
Warranty 12 months from the date of installation
Type Universal, Tension and Compression
Least Count 0.01mm (Deflection)
Measuring Units N, Kgf, Lbf selectable
Accuracy + 1 % of the reading
Display Microcontroller based 6 Digit Digital Display System & LCD
Maximum Deflection 300 mm
Power required 180 VAC to 260 VAC at 50 Hertz
Load applying Through hand operated rotating wheel

Steering Lock Latch Testing Machine

Supported by a team of hardworking professionals, we have been able to offer a range of Steering Lock Latch Testing Machine.

Product Details:
Minimum Order Quantity 1 Piece
System Status Automatic Operation
Brand Star Embsys
Grade Semi-Automatic
Material Stainless Steel
Capacity 300 NM
Speed 50 to 500 Degree / Minute
Protection Overload Buzzer
Safety Emergency Switch, MCB
Power Supply 230 VAC at 50 Hz
Accuracy 0.01 NM

Servo Control Computerized Universal Testing Machine

We are the leading manufacturer and supplier of Servo Control Computerized Universal Testing Machine made from high quality material.

Product Details:
System status Touch Screen HMI- PLC with computer Interface
Cross head travel 1000 mm
Resolution of displ 0.01mm
Speed 0.5 to 500 mm/minute
Machine capacity Available in 100Kgf/1KN, 500Kgf/5KN, 1Tonf/10KN, 2Tonf/20KN, 5Tonf/50KN, 10T/100KN.
Number of screws Twin
Software The windows based software
Data entry Through software
PC connectivity RS - 232 / USB
Reports and printouts Graphical-data type reports can be printed through software
Load cell S Type
Load cell unit Kg /N /Ton /kN

Universal Testing Machines

Product Details:
Automatic Grade Semi - Automatic, Automatic
Brand Star embsys
Material for Construction Stainless steel
Surface Treatment Paint Coated
Power Source Electric
Model SE 101
Usage Laboratory, Industrial
Application System
Peak load along with on line load
Maximum elongation with online elongation.
Ultimate Tensile Strength
Graphical Display of load vs. time.
Graphical Display of elongation vs. time.
Graphical Display of load vs. elongation.
Graphical Display of stress vs. strain.
Complete Statistical Analysis.
Date Report Management.
Safety Features:
Machine stops after specimen failure.
Safety against Over travel of piston.
Safeguard against high temperature.
Surge Protector.
Auto Machine Diagnosis.
Safety against overload.
Computerized Servo Control Version
Stress Controlled kN/min
Strain Controlled mm/min
Air cooled Inter cooler.
On-Board characteristics linearizing.
Fully Computer Controlled.

Digital Universal Testing Machines

We are offering a wide range of Digital Universal Testing Machines.

Product Details:
Capacity 100 kN to 2200 kN
Power 220 V 50 HZ
Weight 950 kg
Size 880 * 820 * 2000 mm
Brand Star embsys
Display Type LED

Computerized Compression Testing Machine

We are the leading manufacturer and supplier of Computerized Compression testing machine made from supreme quality material.

Product Details:
Capacity 2000 kN
Least Count 0.1 kN
Accuracy Class 1 range 200 - 2000 kN
Dimensions 850 x 425 x 964
Power 1.5 KW
Maximum Distance between Platens 340 mm
Platen Diameter 300 mm
Weight 800 Kg
Main Characteristics:
Standard EN 12390-4; BS 1881 and ASTM C39
Automatic test cycle with standard Rapid Approach
LCD Data Acquisition and Control System
Menu Driven Software for easy operation
Load vs time plot and instantaneous load rate displayed
load rate control within ±5 from 1 kN/sec to 20 kN/sec
Calibration process accredited by NABL (National Accreditation Board for Labourites)
RS 232 output, PC software for test control and advanced report printout
High stability welded assembly
50 mm piston stroke with safety limit switch
Platen hardness of min 55 HRC
Distance pieces and safety door included
Ball seating assembly and frame tested for stability

Cube Compression Testing Machine

We are the leading manufacturer and supplier of Cube Compression Testing Machine.

Product Details:
Category Number AT-121-1
Capacity 300kN (In kN)
Digital Indicator 300kN (In kN)
Least Count 1kN (In kN)
Brand Star embsys
Material for Construction Stainless steel
Main Characteristics:
Cat. No. AT-121-2 AT-121-3 AT-121-5 AT-121-6 AT-121-7
Capacity (In kN) 600kN 1000kN 1500kN 1800kN 3000kN
Digital Indicator (In kN) 600kN 1000kN 1500kN 1800kN 3000kN
Least Count (In kN) 1kN 2kN 2kN 2kN 1kN
